Transparent GraphQL CQRS for Distributed Microservices
Built on Pingora—Cloudflare's core proxy platform—SpectraGQL inspects GraphQL at the edge, reverse-proxies read queries to upstream services, and re-routes write mutations into industry-standard event logs to power eventually consistent event-sourced microservices.
Hot-Path Performance Invariants
Optimized for Wire-Speed Line Rate
Every microsecond and heap allocation on the request/dispatch hot path matters. SpectraGQL is relentlessly engineered to avoid locks and eliminate thread contention at wire speed.
Sub-Millisecond Edge Latency
Mode B mutation termination with deterministic UUIDv7 & HLC timestamps
Wire-Speed Throughput
Async non-blocking Pingora event loop handling millions of concurrent streams
Zero Alloc Hot Path
Zero redundant JSON deserialization and lock-free atomic latency metrics
Ultra-Lean Appliance
Compiled native Rust with minimal idle memory overhead and zero GC pauses
Broker-First & Framework-Agnostic
Uses Your Existing Event Infrastructure
SpectraGQL streams write mutations into durable logs at edge velocity without RPC bottlenecks. Bring Your Own Workers (BYOW) in Go, Node.js, Python, or Rust.
Primary reference sink with ephemeral inboxes, consumer lag tracking, and sub-millisecond publish.
High-watermark partition streaming with zero-allocation gateway record dispatch.
Zero-copy append-only sequential stream over TCP and QUIC built in Rust.
Low-latency append-only streams with consumer groups (XADD, XREADGROUP, XPENDING).
Anatomy of a Wire-Speed Mutation
How SpectraGQL Routes Mutations
Hover on any stage of the interactive pipeline to find out howSee how incoming GraphQL mutations are classified, split into sub-millisecond receipts, and streamed into append-only event logs.
GraphQL Mode B Mutation
The client dispatches standard GraphQL over HTTP/2. SpectraGQL breaks down the request into its constituent protocol components without executing heavyweight ORM layers:
mutation MovedAddress($userId: ID!, $street: String!, $city: String!) {
updateAddress(userId: $userId, street: $street, city: $city) {
receiptId
status
timestamp
}
}Sub-ms Gateway Receipt
Every microsecond matters. Built on Cloudflare Pingora, the request/dispatch hot path enforces strict invariants to deliver line-rate wire throughput:
{
"data": {
"updateAddress": {
"receiptId": "018f3a9e-8c4d-7b2a-9f12-4c9f12345678",
"status": "ACCEPTED",
"timestamp": "2026-09-16T10:30:00.123456Z"
}
}
}Sub-ms Gateway Receipt
SpectraGQL bridges legacy architectures and streaming CQRS without downtime. Configure routing modes per-mutation directly in spectra.toml:
{
"data": {
"updateAddress": {
"receiptId": "018f3a9e-8c4d-7b2a-9f12-4c9f12345678",
"status": "ACCEPTED",
"timestamp": "2026-09-16T10:30:00.123456Z"
}
}
}Appended Broker Event
Asynchronously, SpectraGQL wraps the parsed mutation into an immutable, CNCF CloudEvents envelope and pushes it into the configured event sink:
{
"specversion": "1.0",
"id": "018f3a9e-8c4d-7b2a-9f12-4c9f12345678",
"type": "domain.user.moved_address",
"source": "/edge/spectragql-us-east",
"time": "2026-09-22T04:12:00.000000Z",
"datacontenttype": "application/json",
"data": {
"userId": "usr_99",
"street": "742 Evergreen Terrace",
"city": "Springfield"
}
}Edge Security & Policy Pipeline
Interceptors & AuthN / AuthZ
Evaluate authentication, RBAC policies, and custom WebAssembly hooks before mutations reach downstream workers or upstream services—with zero locks and microsecond edge execution.
Interceptors: Google CEL & WebAssembly
Two complementary approaches to reject, sanitize, obfuscate, or decorate requests at wire speed
SpectraGQL provides two complementary execution tiers for edge request and response manipulation: Google Common Expression Language (CEL) for lightweight, declarative boolean checks, and WebAssembly (WASM) guest plugins when dynamic state, external cryptographic hashing, or full payload transformations are required.
Google CEL (Zero-Allocation Rules)
Fast Path (<5µs)Best for fast declarative expressions evaluating headers, client IP, GraphQL operation names, and mutation variable predicates without compiling or bundling guest binaries.
[interceptors.auth_guard]
stage = "request"
type = "cel"
expr = """
'authorization' in request.headers
&& request.headers['authorization'].startsWith('Bearer ')
"""
[interceptors.leak_guard]
stage = "response"
type = "cel"
expr = "!body.contains('internal_secret_key')"WASM Plugins (Deep Transformations)
Turing-Complete SandboxCEL is intentionally constrained to pure predicates. When you need to rewrite JSON payloads, sanitize PII, obfuscate credit cards, compute dynamic signatures, or enforce stateful token buckets, WASM plugins execute in sandboxed memory with epoch-tick execution limits and circuit-breaker fail-safes.
[interceptors.pii_scrubber] stage = "response" type = "wasm" module = "modules/scrubber.cwasm" function = "scrub_response" timeout_ms = 5 fail_mode = "fail_closed" circuit_breaker_failures = 5
Works with Third-Party Standards-Based AuthN Providers
Declarative RBAC and universal OIDC / JWKS with zero-copy cryptographic token verification using a bounded LRU cache (10,000 entries). Automatically maps JWT/OIDC roles from standard identity providers (e.g. Clerk, Auth0, Keycloak) to permitted GraphQL operations with configurable unauthenticated operation bypass.
[interceptors.rbac_guard] stage = "request" type = "rbac" jwks_url = "https://auth.company.com/.well-known/jwks.json" mutations_default = "deny_unlisted" unauthenticated_ops = ["IntrospectionQuery", "login"] [interceptors.rbac_guard.roles] admin = ["*"] editor = ["updateAddress", "confirmOrder"] viewer = ["getProfile"]
Full Security Auditing: Accepted & Rejected Mutations
Security auditing applies to both accepted mutations and rejected attempts. Capture malicious or invalid traffic in real time without passing load upstream, and stream accepted mutation audit trails with monotonic UUIDv7 IDs and HLC timestamps for security tweaking and compliance. Can be run in DX audit_only mode, active enforcement, or disabled in production.
// Published broker audit stream
{
"id": "018f6c91-b3b2-7000-8480-1c6e11516001",
"topic": "interceptors.audit.updateaddress",
"type": "com.spectragql.interceptor.audit",
"status": "ACCEPTED", // or "REJECTED" (e.g. RBAC_FORBIDDEN, 403)
"audit_tag": "SECURITY_POLICY_PASSED",
"hlc": "1774136400000000000-0001",
"client_ip": "198.51.100.42"
}Zero-Overhead Edge Telemetry
Domain-Level Observability
Administrative inspection and telemetry APIs (/admin/*) run entirely out-of-band on dedicated worker loops—delivering live GraphQL mutation traces, causal command verification, and broker consumer lag tracking with 0 mutex locks on edge client traffic.

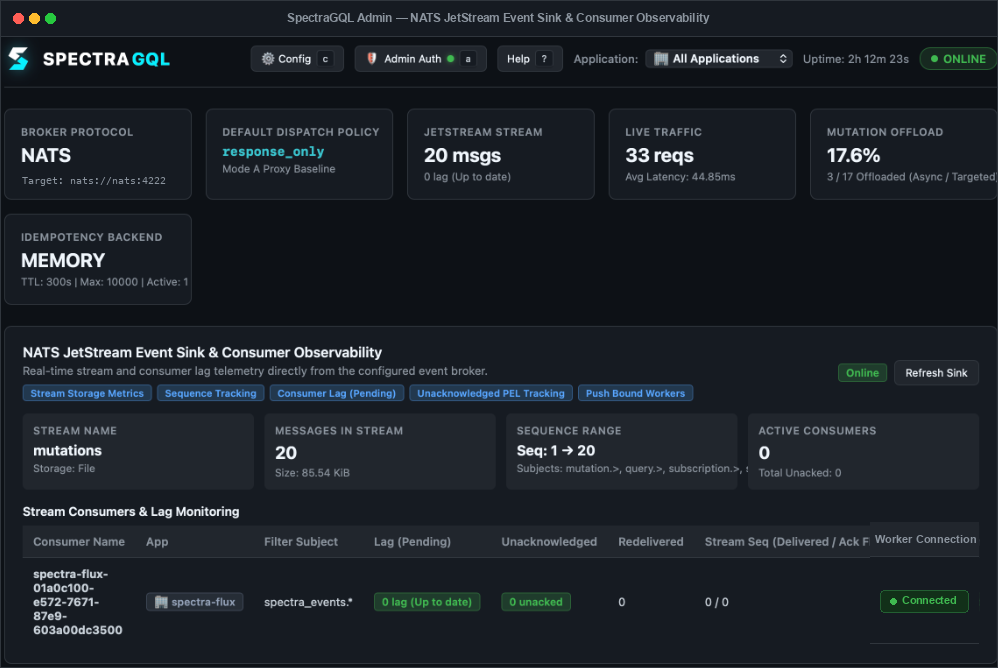

Zero-Touch Broker Discovery & Consumer Lag Inspection
SpectraGQL queries broker ground truth directly out-of-band on dedicated background worker loops. Inspect real-time stream message depth, sequence numbers, consumer pending lag (num_pending), unacknowledged inboxes (num_ack_pending), and connected downstream worker appliances like SpectraFlux—with zero custom worker SDKs and 0 mutex locks on edge client traffic.
Zero Worker SDKs
Downstream BYOW workers in Go, Node.js, Python, or Rust subscribe directly to broker topics without embedding proprietary gateway agent libraries.
Broker Ground Truth
Direct out-of-band inspection of NATS JetStream consumer info (num_pending, num_ack_pending), Kafka high-watermarks, and Redis XPENDING offsets.
SpectraFlux Integration
Live tracking of active consumer groups and downstream worker engines—including companion SpectraFlux WebAssembly chassis appliances.

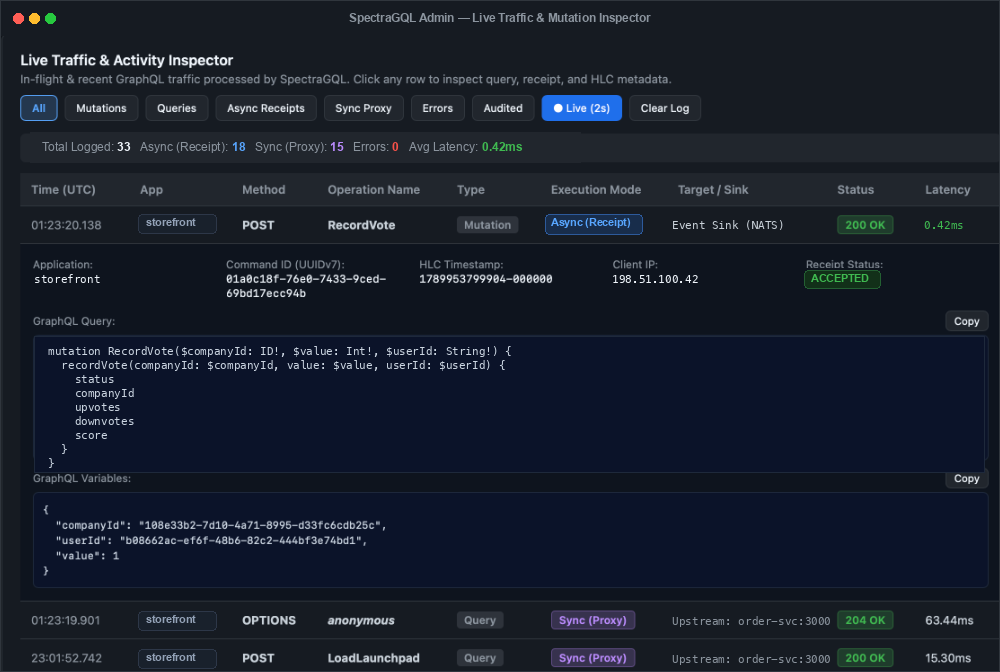

Real-Time Mutation Inspection & Trace Causality
Inspect in-flight GraphQL mutations as they arrive at the edge. View monotonic UUIDv7 Command IDs, Hybrid Logical Clock (HLC) timestamps, execution modes, and raw GraphQL queries with variables—all captured with sub-millisecond edge latency and lock-free circular buffers that never block client threads.
Deterministic Causal Tracing
Every mutation carries a monotonic UUIDv7 Command ID and Hybrid Logical Clock timestamp (e.g. 1789953799904-000000) guaranteeing strict temporal ordering across distributed workers.
Sub-Millisecond Wire Receipts
Mode B mutations terminate at the edge in sub-millisecond latency (0.42ms recorded) returning HTTP 200 ACCEPTED while spooling durable records into append-only sinks.
Full Payload Inspection
View parsed AST operation names, query selection sets, client IPs, and variable payloads with one-click clipboard copying and zero duplicate deserialization overhead.

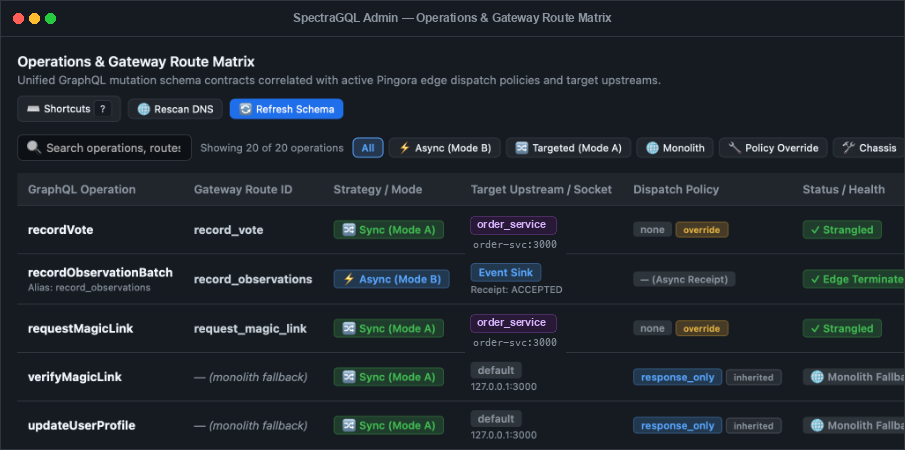

Correlate GraphQL Operations with Edge Routing Policies
Unified matrix view correlating upstream GraphQL mutation schema contracts with active Pingora edge dispatch policies. See at a glance which operations are edge-terminated (Mode B), strangled to microservices (Mode A), or routed to legacy monolith fallbacks—with instant alerts when edge policies drift from schema definitions.
CQRS Partitioning at a Glance
Instant visibility into Mode A (reverse-proxied read/write microservices) vs. Mode B (edge-terminated append-only event sink dispatches).
Safe Progressive Migration
Strangle monolith mutations one operation at a time without breaking client schema contracts or disrupting upstream teams.
Zero-Downtime Contract Drift Alerts
Detect when deployed gateway routing policies drift from upstream GraphQL schema definitions before client errors occur.
FAQ
Frequently Asked Questions
Core architecture, Mode B edge termination, and event sink compatibility.
SpectraGQL is an ultra-high-performance wire-speed API gateway and event-driven appliance built in Rust on Cloudflare's Pingora engine.
It provides a pragmatic dual-path CQRS architecture:
- Mode A (Read Queries): Reverse-proxies GraphQL queries and REST reads directly to upstream services with connection pooling, retries, and passive telemetry.
- Mode B (Write Mutations): Routes mutations through either SyncUpstream (drop-in proxying while tapping broker events) or AsyncCommand (sub-millisecond edge command receipts).
SpectraGQL routes write mutations through two flexible modes so organizations can adopt CQRS progressively without risky rewrites:
- AsyncCommand: The gateway terminates mutations at the edge, immediately issuing a deterministic Command Receipt (<1ms HTTP 200 ACCEPTED) with a monotonic UUIDv7 ID and Hybrid Logical Clock (HLC) timestamp while dispatching the payload into an append-only event stream.
- SyncUpstream: Mutations are synchronously proxied to your existing service while simultaneously and transparently tapping the event into the broker—allowing organizations to adopt CQRS incrementally without rewriting existing code.
SpectraGQL streams mutations directly into your existing append-only event infrastructure out of the box with zero bespoke RPC overhead:
- NATS JetStream (Published Beta): Primary reference implementation with ephemeral inboxes and consumer lag tracking.
- Apache Kafka & Redpanda (Published Alpha): Enterprise partition streaming with high-watermark inspection.
- Apache Iggy (Published Alpha): Zero-copy streaming in Rust over TCP/QUIC.
- Valkey / Redis Streams (Published Alpha): In-memory append-only stream buffers with consumer groups (
XREADGROUP).
Downstream write handlers follow a Bring-Your-Own-Worker (BYOW) approach:
- Zero Gateway SDKs: Microservices, background workers, or workflows written in Go, Node.js, Python, or Rust consume standard CNCF CloudEvents directly from broker consumer groups.
- Zero Reverse Ports: Workers do not require open HTTP ports or reverse network connectivity to the gateway.
- Broker Ground Truth: SpectraGQL inspects consumer group lag and high-watermarks directly from broker metrics out-of-band.
- Don't Have Your Own Worker? Check out SpectraFlux—our high-velocity WebAssembly worker chassis and execution appliance built specifically to consume event sinks and process reactive CQRS workflows out of the box.
SpectraGQL is built for universal compatibility with standard identity protocols:
- Universal OIDC & JWKS: Validates JSON Web Tokens (JWT) at line-rate from any identity provider conforming to RFC 7519 / OpenID Connect—including Okta, Auth0, Supabase, AWS Cognito, Clerk, Keycloak, and Firebase.
- Zero-Allocation Token Caching: Cryptographically verified tokens and claims are cached in a high-speed bounded L1 LRU cache (10,000 capacity), eliminating redundant signature verifications on subsequent requests.
- Declarative RBAC & ABAC: Express authorization policies natively in configuration or evaluated at wire speed with Common Expression Language (CEL) rules without invoking upstream services.
- Looking for Passwordless Out of the Box? Check out SpectraFlux, which includes a pre-packaged MagicLink AuthN fluxcell. It handles secure one-time password (OTP) email authentication, token generation, and session caching out of the box with zero boilerplate.
SpectraGQL enforces strict zero-bloat invariants on the request/dispatch hot path:
- Zero Redundant Deserialization: Reuses pre-parsed AST tokens and JSON payloads from the protocol decoder.
- Zero Edge Formatting: Never pretty-prints JSON or indents whitespace on worker threads.
- Lock-Free Atomics: Eliminates mutex locks on metrics, latency counters, and circular traffic buffers to prevent thread contention.
- Strictly Out-of-Band Admin APIs: Inspection endpoints (
/admin/*) execute out-of-band and introduce zero branching into user traffic.
Try SpectraGQL today
SpectraGQL terminates GraphQL mutations at the gateway edge in sub-millisecond latency. Zero allocation on the hot path, lock-free atomics, and broker-agnostic event sourcing.
